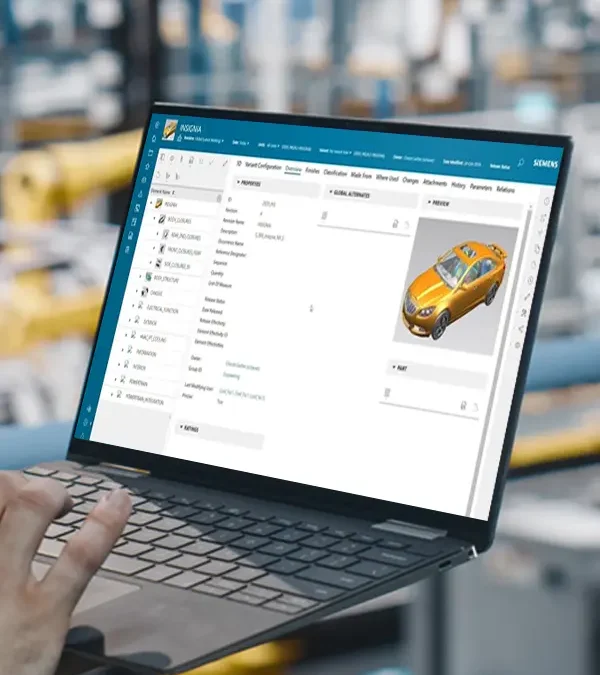

Teamcenter Product Configurator Guide
Blog Article | September 24, 2025
Author: Bernard Biron
Director of Technical Management
- 23 years of implementing Siemens Teamcenter PLM for multiple clients in Europe and North America
- Successfully lead solution design for critical digital transformations at some of the largest Fortune100 companies
- Recognized by peers as a senior expert in the PLM industry and regularly speaks at conferences including Siemens Realize Live
- Experienced with multiple Teamcenter modules and features covering the full digital thread, from requirements to manufacturing
Summary & Key Topics
The Teamcenter Product Configurator provides a centralized, rules-based framework for managing product variability, enabling manufacturers to deliver customized products efficiently and accurately. It is ideal for Configure-to-Order (CTO) and blended CTO/ETO scenarios, centralizing option definitions, rules, and configuration logic across CAD, BOMs, and process planning. Key benefits include reduced engineering effort, error prevention, faster sales cycles, and integration with the Digital Twin. Siemens’ Color Explosion add-on extends configurator capabilities to automated color variants and real-time visualization. Saratech helps organizations implement, optimize, and scale the configurator for measurable business impact.
Key Topics:
-
Purpose: manage variability, enable mass customization
-
Best for CTO and blended CTO/ETO scenarios
-
Benefits: reuse, streamlined variant management, error reduction
-
Integration: CAD, BOMs, process planning, Digital Twin support
-
Roles: marketing/sales, engineering, manufacturing, customer-facing tools
-
Core components: Option Dictionary, Configurator Context, configuration rules
-
Rule types: availability, inclusion, exclusion, exceptions, free-form
-
Features: real-time validation, 3D visualization, role-based access, change control
-
Color Explosion: automated color variants, real-time previews, enforced aesthetics
-
Industry applicability: automotive, aerospace, marine, industrial machinery, medical devices, consumer products
Managing Product Variability in a World of Customization
Today’s manufacturers face a clear challenge: customers expect personalized products, but businesses must still deliver at scale, speed, and competitive margins. Every added option, variant, or feature increases product complexity—and without the right system in place, variability can overwhelm engineering, manufacturing, and sales teams.
This is where the Teamcenter Product Configurator delivers the most value. It provides a centralized, rules-based framework for managing product variability, ensuring that what customers want is both buildable and profitable.
But not every business scenario benefits equally. Siemens positions the Product Configurator as best suited for:
-
Configure-to-Order (CTO): High part counts, complex variability, and customer-driven feature/part selections.
- Blended CTO + ETO: A base platform is configured (CTO), then select portions are engineered (ETO) to customer needs.
It is less applicable for pure Engineer-to-Order (ETO)—where every product is designed from scratch—or qualitative custom products that function more as “one-off art.” The configurator thrives in the middle of Siemens’ variability management spectrum, where companies must balance repeatability, efficiency, and customer choice.
Purpose & Benefits of Product Configuration
The purpose of Teamcenter’s Product Configurator is to simplify and control variability across the entire product lifecycle. By defining features once and reusing them everywhere, businesses can reduce engineering effort while expanding product offerings.
Key Benefits Include:
Drive efficiency by reusing assemblies and modules across product variants.
Eliminate duplicated datasets and manual rework with centralized rules.
Apply effectivity and obsolescence control across product families.
Ensure that digital representations match real-world products for simulation, manufacturing, and service.
Role of the Product Configurator in the Lifecycle
Configuration Is Not Just an Engineering Tool — It’s a Business Enabler Across Disciplines:
Define offerings, generate valid quotes, and prevent errors in customer proposals.
Link CAD and BOMs to feature definitions, ensuring designs reflect actual sellable configurations.
Generate accurate MBOMs and process plans from configuration logic.
Provide sales portals and visualization tools with accurate, rules-driven options through APIs that let third-party applications leverage the Teamcenter configuration Engine.
Because it’s fully integrated with Teamcenter, the configurator ensures all stakeholders work from the same single source of truth.
Why Choose Saratech for Teamcenter Product Configurator?
At Saratech, we help organizations deploy, optimize, and scale Teamcenter Product Configurator. From business case assessment and implementation to training and ongoing support, our experts ensure you realize the full value of configuration-driven design and manufacturing. Contact Saratech today to unlock efficiency and competitive advantage in your business.
Building Blocks of the Product Configurator
Option Dictionary
The Option Dictionary is the foundation of product configuration. It defines:
- Global option families (e.g., trim levels, powertrain, connectivity).
- Option values for each family.
- Relationships and variability across the portfolio.
Configurator Context
The Configurator Context allows teams to manage product families, control access, and apply rules at the right level of scope—program, platform, or product line.
Common Terminology
- Option Family – A group of interchangeable features.
- Package Option – Bundled selections like “Sport Package.”
- Product Model – A configurable product structure tied to defined options.
Configuration Rules & Types
Rules are at the core of how Teamcenter ensures accuracy and prevents invalid selections. The main rule types include:
Availability Rules
Control which options apply to specific products.
Inclusion Rules
Require one option when another is selected.
Exclusion Rules
Prevent incompatible options from being chosen together.
Exception Rules
Define exceptions to general rules.
Free-Form Rules
Support advanced, custom logic.
Example: Choosing a hybrid engine automatically excludes diesel fuel systems while including a specific battery option.
These rules reduce errors, shorten cycle times, and support downstream automation.
Features of Teamcenter Product Configurator
Real-Time Validation
Grid-based interface instantly flags invalid choices.
3D Visualization
Users can validate geometry and features visually, supporting early design and customer interactions.
Role-Based Access
Sales, engineering, and manufacturing each work with tailored views.
Change Management Controls
Track effectivity and obsolescence across product lines.
Scalable Architecture
Supports small product families and enterprise-level variability alike.
Key Product Configurator Approaches
Configure-to-Order (CTO)
For organizations with many product variants, CTO enables fast customer-specific configurations while maintaining efficiency.
Use Case: A truck manufacturer offers multiple chassis, axle, and cab options. The configurator ensures only buildable combinations are selectable, automating BOM and manufacturing plans.
Mixed CTO + ETO
In industries where a base configuration is extended with engineered modifications, the configurator provides structure.
Use Case: A medical equipment manufacturer configures a baseline imaging system (CTO) and allows engineering to customize mounting and shielding options (ETO). The configurator ensures that base system features remain valid while customizations are controlled.
Variability Management: Siemens’ Vision
The Product Configurator reflects Siemens’ philosophy of centralized variability management, where:
- One Feature Definition applies across CAD, BOMs, and process planning.
- Variability is separated from content, allowing product data to evolve without breaking rules.
- Disciplines share the same framework, reducing miscommunication and downstream errors.
This creates continuity in the Digital Twin, ensuring what’s promised to customers can actually be engineered, built, and supported.
Extending Configurator Power with Color Explosion
A major development for many manufacturers is Siemens’ new Color Explosion add-on.
Built directly on top of the Product Configurator, it enables:
- Automated color variant generation without duplicating CAD models.
- Real-time color previews linked to configuration rules.
- Enforced aesthetic constraints, ensuring only valid combinations are visualized.
Industry Example: In marine manufacturing, dealers can configure both technical options and aesthetic color packages. Color Explosion ensures only approved interior/exterior color pairings are selectable, while providing real-time visual feedback for the customer.
In industries like automotive, consumer products, and marine, where aesthetics heavily influence buying decisions, Color Explosion bridges the gap between engineering accuracy and customer experience.
Applicability & FAQs
How is this different from classic variant management?
Classic approaches duplicate data across BOMs and CAD. Teamcenter Product Configurator centralizes logic and enforces it globally.
Is it only for CTO?
It’s best for CTO and blended CTO/ETO environments—not for pure ETO or one-off custom products.
Does it integrate with CAD and PLM?
Yes—natively with NX and Solid Edge, and seamlessly across Teamcenter for BOM, process planning, and manufacturing.
Which industries benefit most?
- Automotive & Transportation
- Aerospace & Defense
- Marine
- Industrial Machinery
- Medical Devices
- Consumer Products
Final Thoughts
The Teamcenter Product Configurator empowers manufacturers to deliver mass customization with efficiency, accuracy, and profitability. Positioned squarely in CTO and blended CTO/ETO environments, it reduces errors, enables faster sales cycles, and ensures downstream processes align with customer expectations.
With the addition of Color Explosion, Siemens is expanding configurator power into aesthetics and visualization, making it an even more valuable tool for customer-facing industries.
